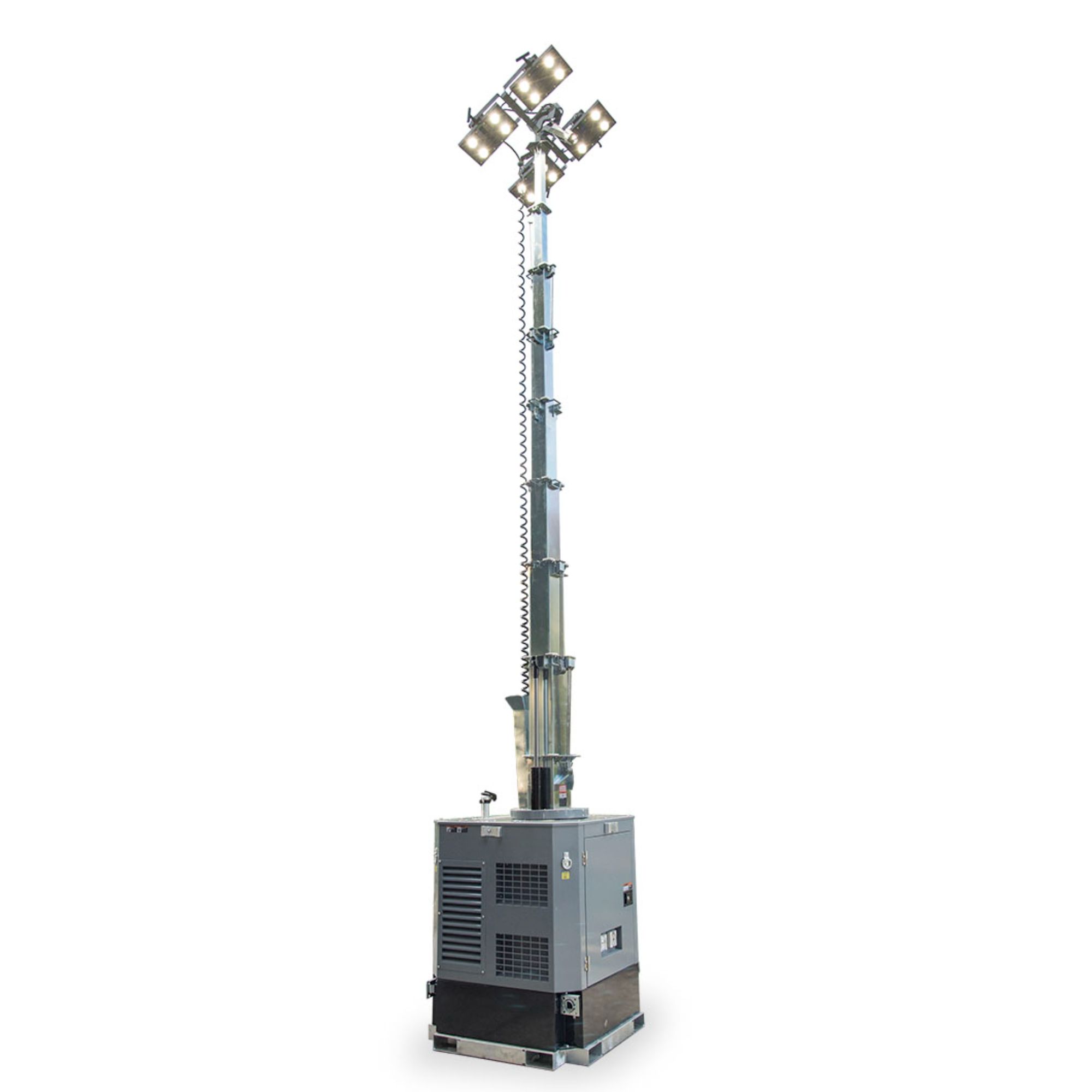

A diesel light tower is a type of lighting tower that is powered by a diesel engine. These light towers typically have diesel generators built into them, which provide the necessary power to run the lights mounted on the tower. Diesel light towers are popular in situations where access to electricity is limited or where a portable lighting solution is needed.
The diesel engine powers the generator, which in turn provides electricity to illuminate the lights on the tower. These light towers are often used in construction sites, mining operations, outdoor events, emergency response situations, and other environments where a reliable and portable lighting source is required.
| Model | X-CLUB |
| Place of Origin | China |
| Brand Name | UNIV |
| Certification | CE/ISO9001 |
| Minimum Order Quantity | 1 |
| Packaging Details | plywood/ wooden case/ EPE foam |
| Delivery Time | 45days |
| Payment Terms | 30% T/T,Balance before delivery |
| Supply Ability | 200Units/month |
Construction Sites,Events and Festivals,Parking Lots and Commercial Areas,Remote or Off-Grid Areas
High quality, More than 16 years of production experience，Products exported to more than 100 countries
| MODEL | X-CUBE | X-CUBE HYBRID | |
| Genset rated Power (KW) | 6 | 6 | |
| Dimension | Lenth | 1180mm | 1180mm |
| Width | 1180mm | 1180mm | |
| Height | 2684mm | 2684mm | |
| Height extended fully | 9m | 9m | |
| Gross Weight | 1100kg | 1100kg | |
| Engine | Engine Model | Perkins 403D-11G | Perkins 403D-11G |
| Rated Speed（rpm） | 1500/1800 | 1500/1800 | |
| Cylinder No. | 3 | 3 | |
| Engine type | 4 stroke,water-cooled | 4 stroke,water-cooled | |
| Air intake methed | Naturally aspirated | Naturally aspirated | |
| Emission | Tier3 | Tier3 | |
| Alternator | Model | MeccAlte LT3N-130/4 | MeccAlte LT3N-130/4 |
| Frequency (HZ) | 50/60 | 50/60 | |
| Rated voltage | 230V (50HZ), 240(60HZ) AC | 230V (50HZ), 240(60HZ) AC | |
| Insulation class | Class H | Class H | |
| Protection grade | IP23 | IP23 | |
| Battery | Battery Type | / | LFP |
| Battery Capacity | / | 200AH 25.6V | |
| / | 5KW.H | ||
| Mast and Light | Light type | LED | LED |
| Luminous Flux | 210000 LM | 210000 LM | |
| Light Qty x WATT | 4×500W | 4×500W | |
| Mast Sections | 9 | 9 | |
| Mast lifting method | Hydraulic | Hydraulic | |
| Light Rotation | Electric motor 355 degrees | Electric motor 355 degrees | |
| Light Angle Adjust | Electric actuator | Electric actuator | |
| Other Item | Fuel Tank Type | Metal | Metal |
| Fuel Tank capacity | 100L | 100L | |
| Operating hours | 80 Hrs | 120 Hrs | |
| Controller | Smartgen ALC708 | Smartgen ALC708 | |
| Output | 2 receptacles | 2 receptacles | |
| Max.Against Wind | 20 m/s | 20 m/s | |
| Noise level dBA@7M | 63dB(A) at 7m | 63dB(A) at 7m | |
| Max.Loading Qty by 40HQ | 20 | 20 | |
