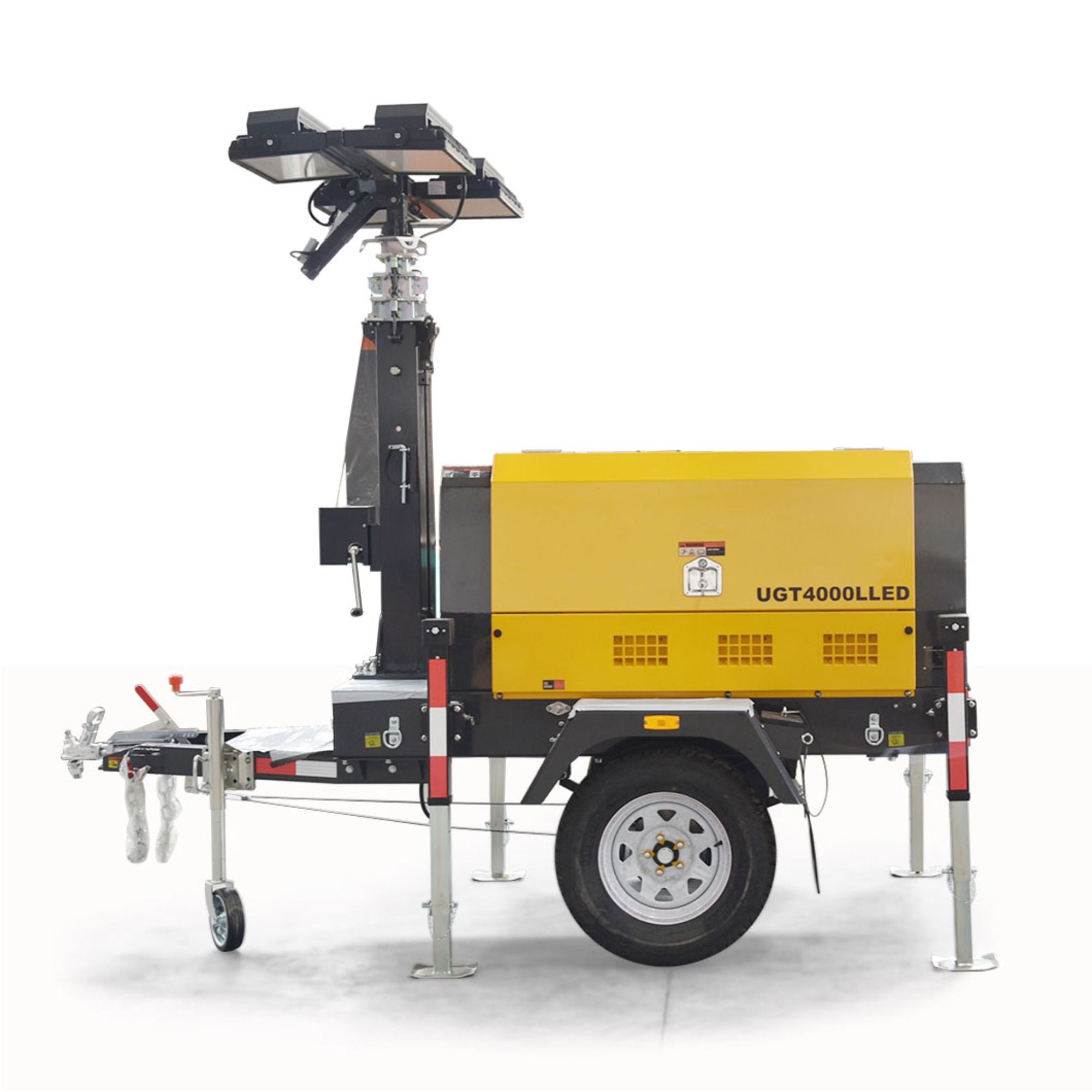

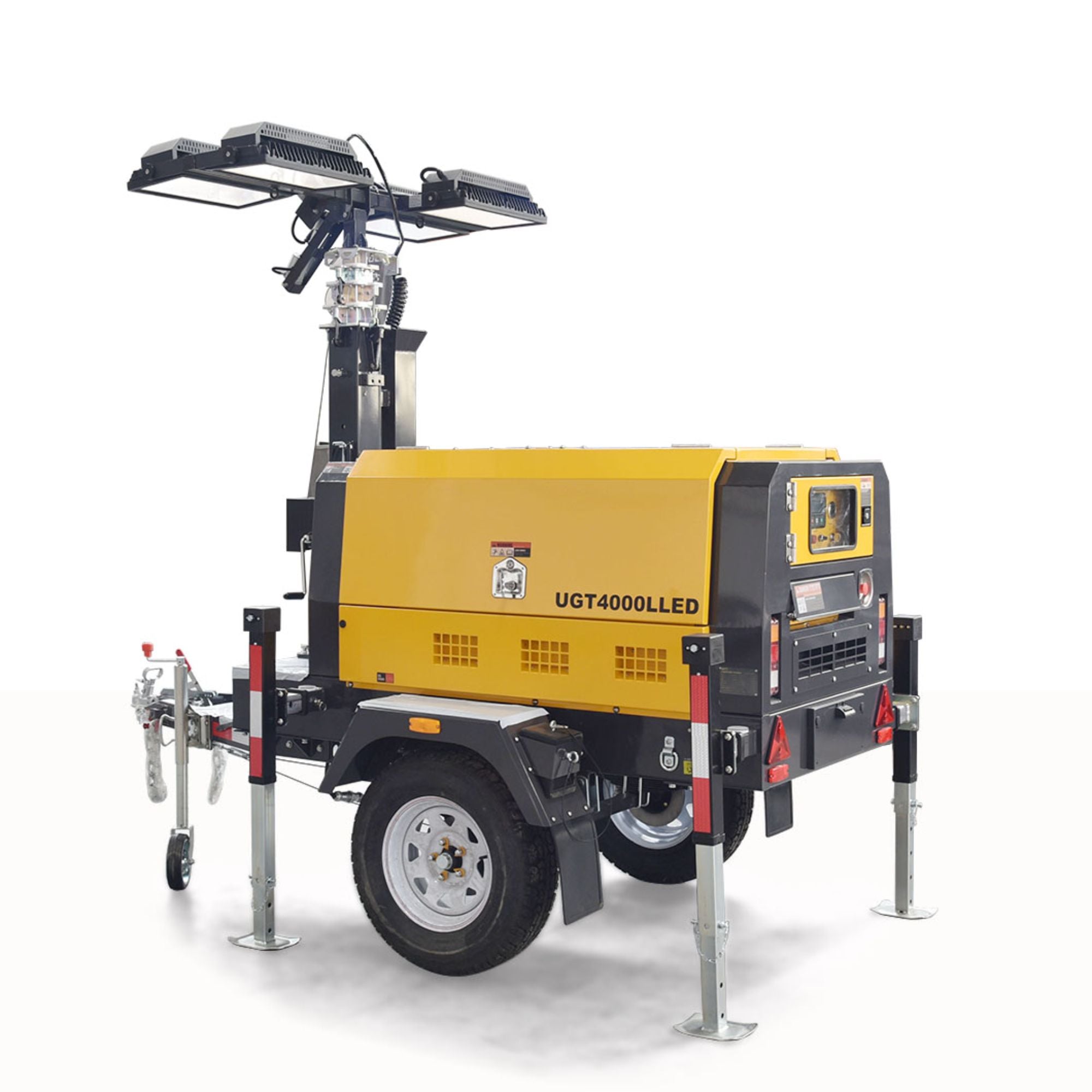

Diesel light tower-UGT4000PLED

A diesel light tower is a type of lighting tower that is powered by a diesel engine. These light towers typically have diesel generators built into them, which provide the necessary power to run the lights mounted on the tower. Diesel light towers are popular in situations where access to electricity is limited or where a portable lighting solution is needed.

The diesel engine powers the generator, which in turn provides electricity to illuminate the lights on the tower. These light towers are often used in construction sites, mining operations, outdoor events, emergency response situations, and other environments where a reliable and portable lighting source is required.

  • Description
  • Applications
  • Competitive Advantage
Inquiry

Is there a problem?
Please contact us to serve you!

Inquiry
Model UGT4000PLED
Place of Origin: China
Brand Name: UNIV
Certification: CE/ISO9001
Minimum Order Quantity: 1
Packaging Details: plywood/ wooden case/ EPE foam
Delivery Time: 45days
Payment Terms: 30% T/T,Balance before delivery
Supply Ability: 200Units/month

Construction Sites,Events and Festivals,Parking Lots and Commercial Areas,Remote or Off-Grid Areas

High quality, More than 16 years of production experience,Products exported to more than 100 countries

MODEL UGT4000PLED
Unit Genset rated Power (KW)  6
Lenth 3031mm
Width 1488mm
Height 3220mm
Height extended fully 7.5m (9m optional)
Gross Weight 1300kg
Engine Engine Model Perkins 403D-11G
Rated Speed(rpm) 1500/1800
Cylinder No. 3
Engine type 4 stroke,water-cooled
Air intake methed Naturally aspirated
Emission Tier3
Alternator Model MeccAlte LT3N-130/4
Frequency (HZ) 50/60
Rated voltage 230V (50HZ),  240(60HZ) AC
Insulation class Class H
Protection grade IP23
Mast and Light Light type LED
Luminous Flux 210000 LM
Light Qty x WATT 4×350W
Mast Sections 5
Mast lifting method Manual/Electric witch/Hydraulic
Light Rotation  No/355 degrees optional
Light Angle Adjust Electric actuator
Trailer Suspension  Leaf spring with mechanical braker
Towing Bar Foldable Tow bar with Jockey wheel
Stabilizing Leg 4Pcs Manual Stabilizing Leg
Rim & Tyre 14"
Towing coupler 50mm ball / 70mm Ring
Tail Lights complex tail light
Max Towing speed 80km/h
Other Item Fuel Tank Type Metal
Fuel Tank capacity 45L
Operating hours 30 Hrs
Controller UK DEEPSEA DSE4520
Output 2  receptacles
Max.Against Wind 20 m/s
Noise level dBA@7M 63dB(A) at 7m
Max.Loading Qty by 40HQ 14
