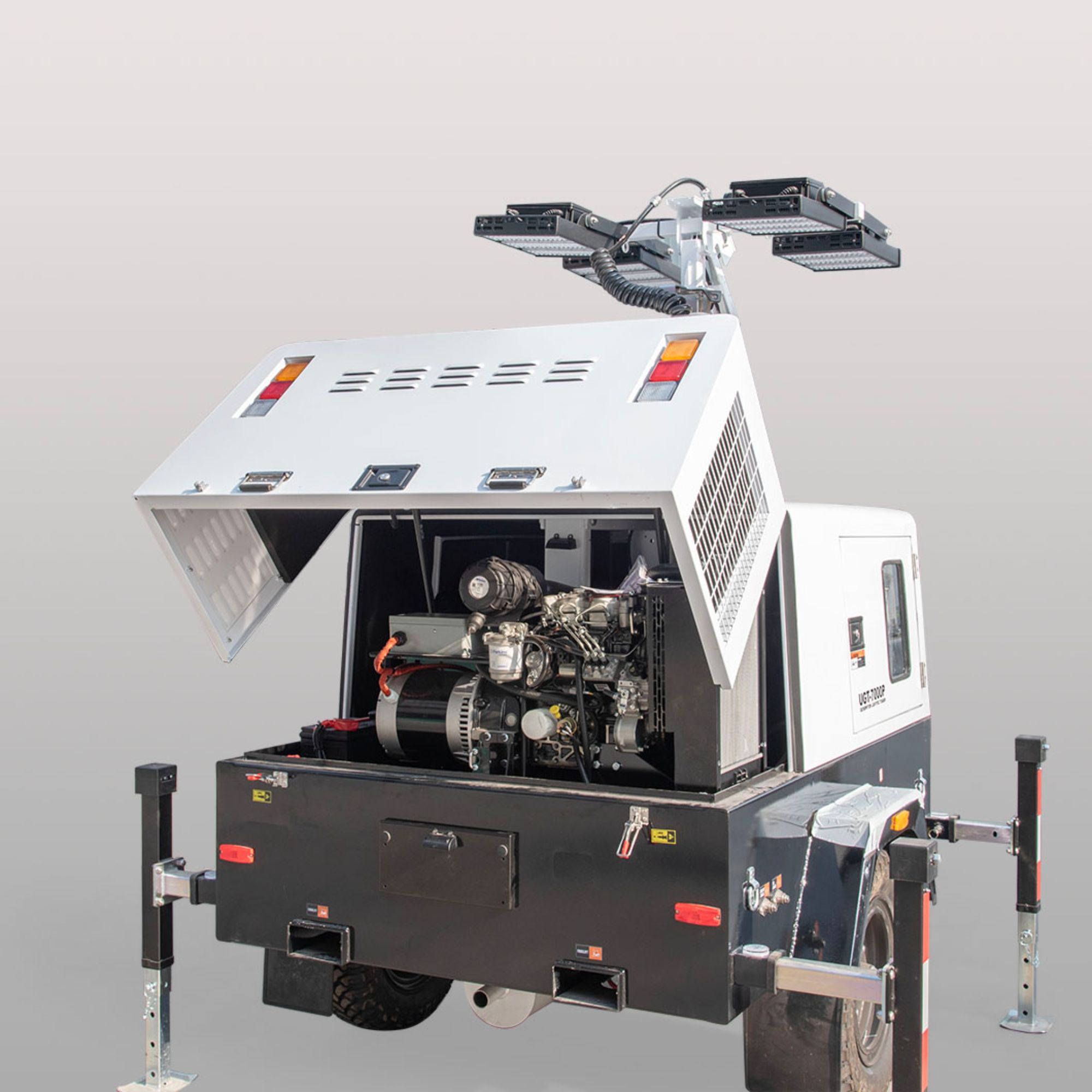

A diesel light tower is a type of lighting tower that is powered by a diesel engine. These light towers typically have diesel generators built into them, which provide the necessary power to run the lights mounted on the tower. Diesel light towers are popular in situations where access to electricity is limited or where a portable lighting solution is needed.
The diesel engine powers the generator, which in turn provides electricity to illuminate the lights on the tower. These light towers are often used in construction sites, mining operations, outdoor events, emergency response situations, and other environments where a reliable and portable lighting source is required.
| Model | UGT4000PLED |
| Place of Origin | China |
| Brand Name | UNIV |
| Certification | CE/ISO9001 |
| Minimum Order Quantity | 1 |
| Packaging Details | plywood/ wooden case/ EPE foam |
| Delivery Time | 45days |
| Payment Terms | 30% T/T,Balance before delivery |
| Supply Ability | 200Units/month |
Construction Sites,Events and Festivals,Parking Lots and Commercial Areas,Remote or Off-Grid Areas
High quality, More than 16 years of production experience，Products exported to more than 100 countries
| MODEL | UGT-7000PLED | ||
| Genset rated Power (KW) | 7 | ||
| Dimension | Lenth | 3000mm | |
| Width | 1538mm | ||
| Height | 2800mm | ||
| Height extended fully | 9m (12m optional) | ||
| Gross Weight | 1350kg | ||
| Engine | Engine Model | Perkins 403D-11G | |
| Rated Speed（rpm） | 1500/1800 | ||
| Cylinder No. | 3 | ||
| Engine type | 4 stroke,water-cooled | ||
| Air intake methed | Naturally aspirated | ||
| Emission | Tier3 | ||
| Alternator | Model | MeccAlte LT3N-160/4 | |
| Frequency (HZ) | 50/60 | ||
| Rated voltage | 230V (50HZ), 240(60HZ) AC | ||
| Insulation class | Class H | ||
| Protection grade | IP23 | ||
| Mast and Light | Light type | LED | |
| Luminous Flux | 210000 LM | ||
| Light Qty x WATT | 4×500W | ||
| Mast Sections | 9 | ||
| Mast lifting method | Hydraulic | ||
| Light Rotation | No/355 degrees optional | ||
| Light Angle Adjust | Electric actuator | ||
| Trailer | Suspension | Leaf spring with mechanical braker | |
| Towing Bar | Foldable Tow bar with Jockey wheel | ||
| Stabilizing Leg | 4Pcs Manual Stabilizing Leg | ||
| Rim & Tyre | 14" | ||
| Towing coupler | 50mm ball / 70mm Ring | ||
| Tail Lights | complex tail light | ||
| Max Towing speed | 80km/h | ||
| Other Item | Fuel Tank Type | Metal | |
| Fuel Tank capacity | 100L | ||
| Operating hours | 80 Hrs | ||
| Controller | Smartgen ALC708 | ||
| Output | 2 receptacles | ||
| Max.Against Wind | 20 m/s | ||
| Noise level dBA@7M | 63dB(A) at 7m | ||
| Max.Loading Qty by 40HQ | 7 | ||
