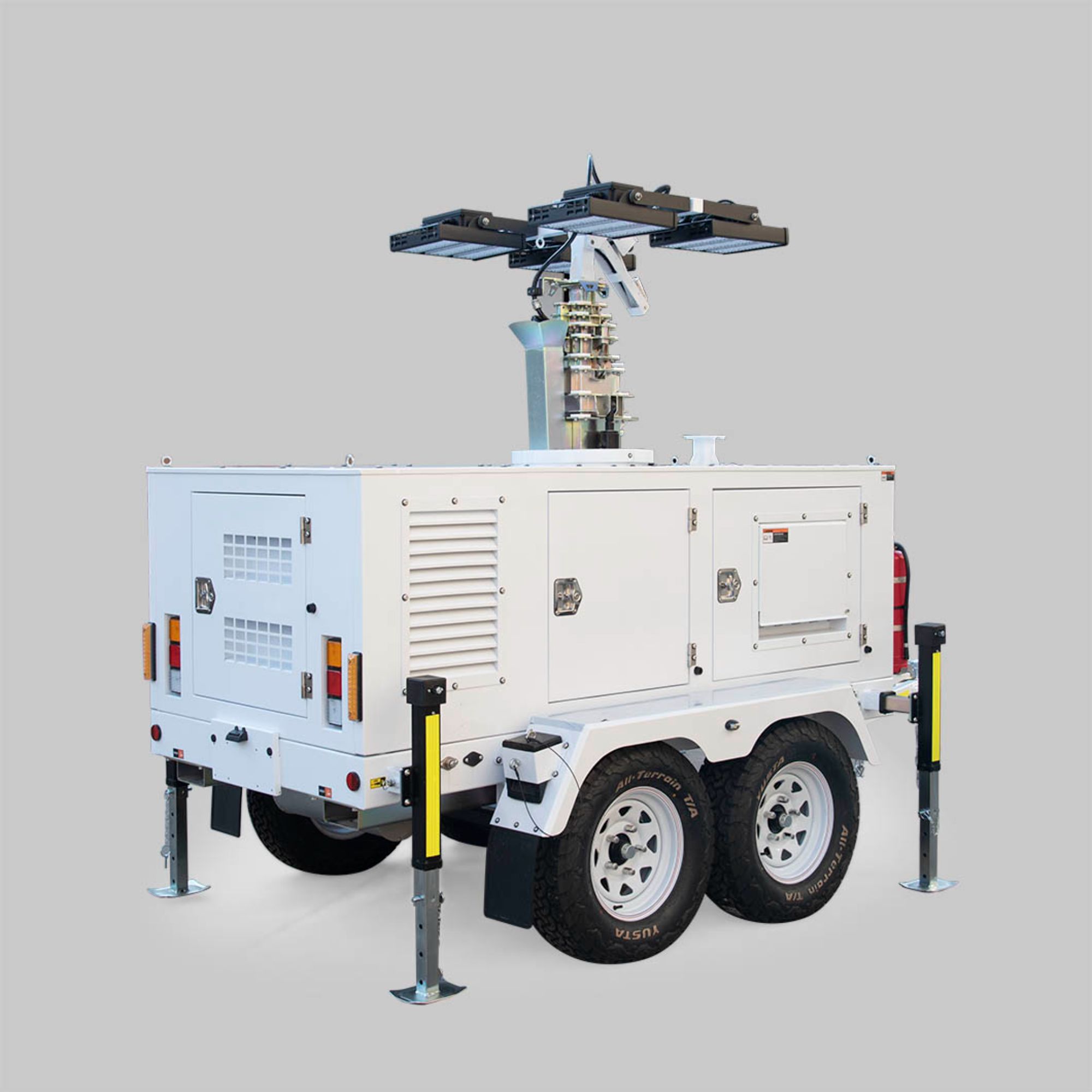

UNIV is powerful in R&D,UHT10PM4 is deign for minning using,so it's equip with high configuration like LFP battery,hydraulic 9m mast,hydraulic panel lifting,Victron remote system.High level for ultimate user experince.
| Place of Origin: | China |
| Brand Name: | UNIV |
| Model Number: |
UHT10PM4
|
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood/ wooden case/ EPE foam |
| Delivery Time: | 45days |
| Payment Terms: | 30% T/T,Balance before delivery |
| Supply Ability: | 200Units/month |
Construction sites,Parking lots and outdoor spaces,Roadworks and maintenance，Mining and remote locations,Temporary Security Needs
High quality, More than 16 years of production experience，Products exported to more than 100 countries
| General | |
| Dimensions (L x W x H) Stowed | 4000*2000*2760mm |
| Dimensions (L x W x H) Deployed | 4000*2000*9500mm |
| Weight | 1955kg |
| Axle | Double |
| Tyres & Rims | 245/75R16LT |
| Brakes | bump |
| Tow Hitch | 50mm Ball |
| Wind Speed Rating | 117Kpa |
| Stabiliser Supports | 4pcs |
| Light | |

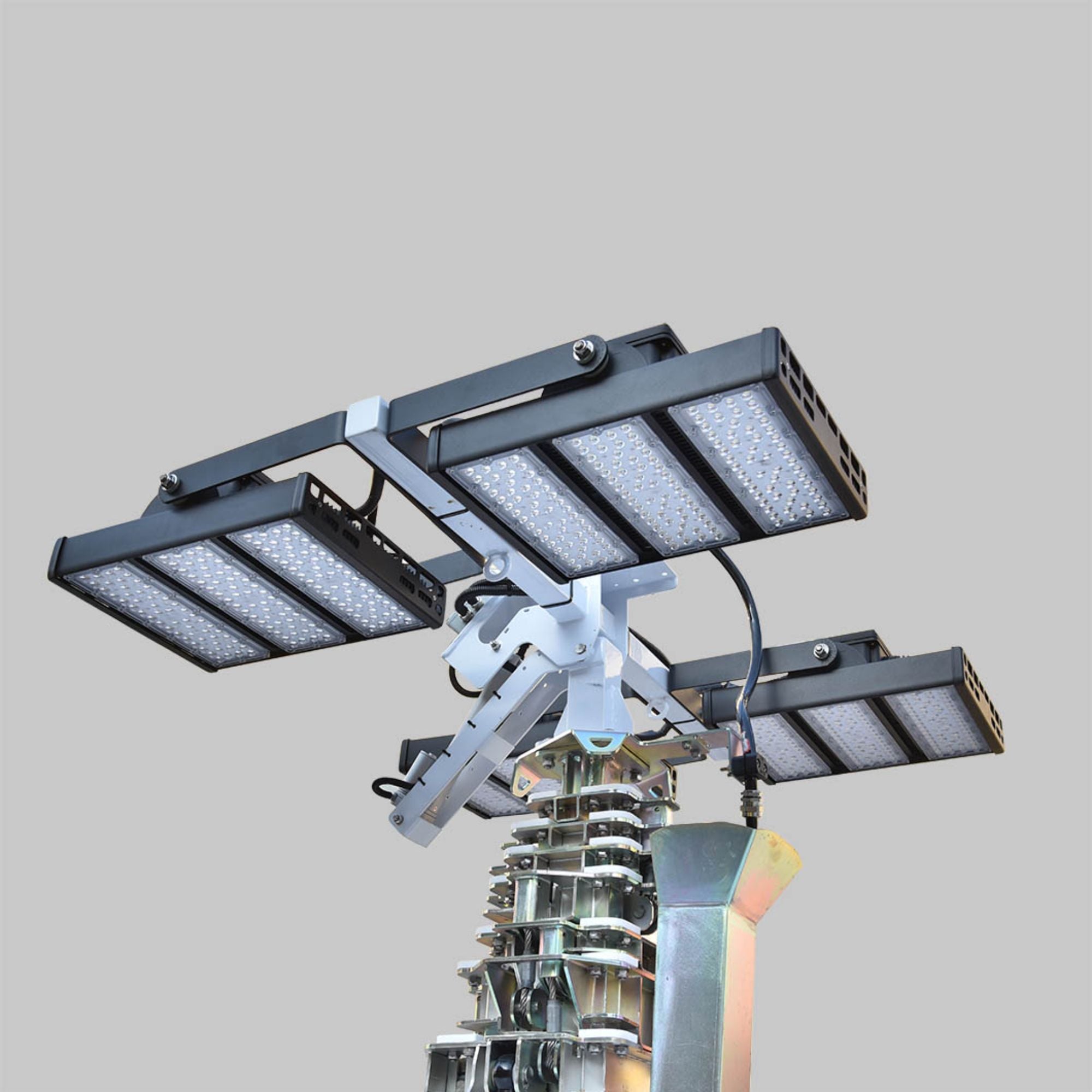

| Lights | LED |
| Light Power | 4*500W |
| Output (Lumens) | 300000Lumens |
| Light Bar Rotation | 350° |
| Light Bar Tilt | 90° |
| Mast | |

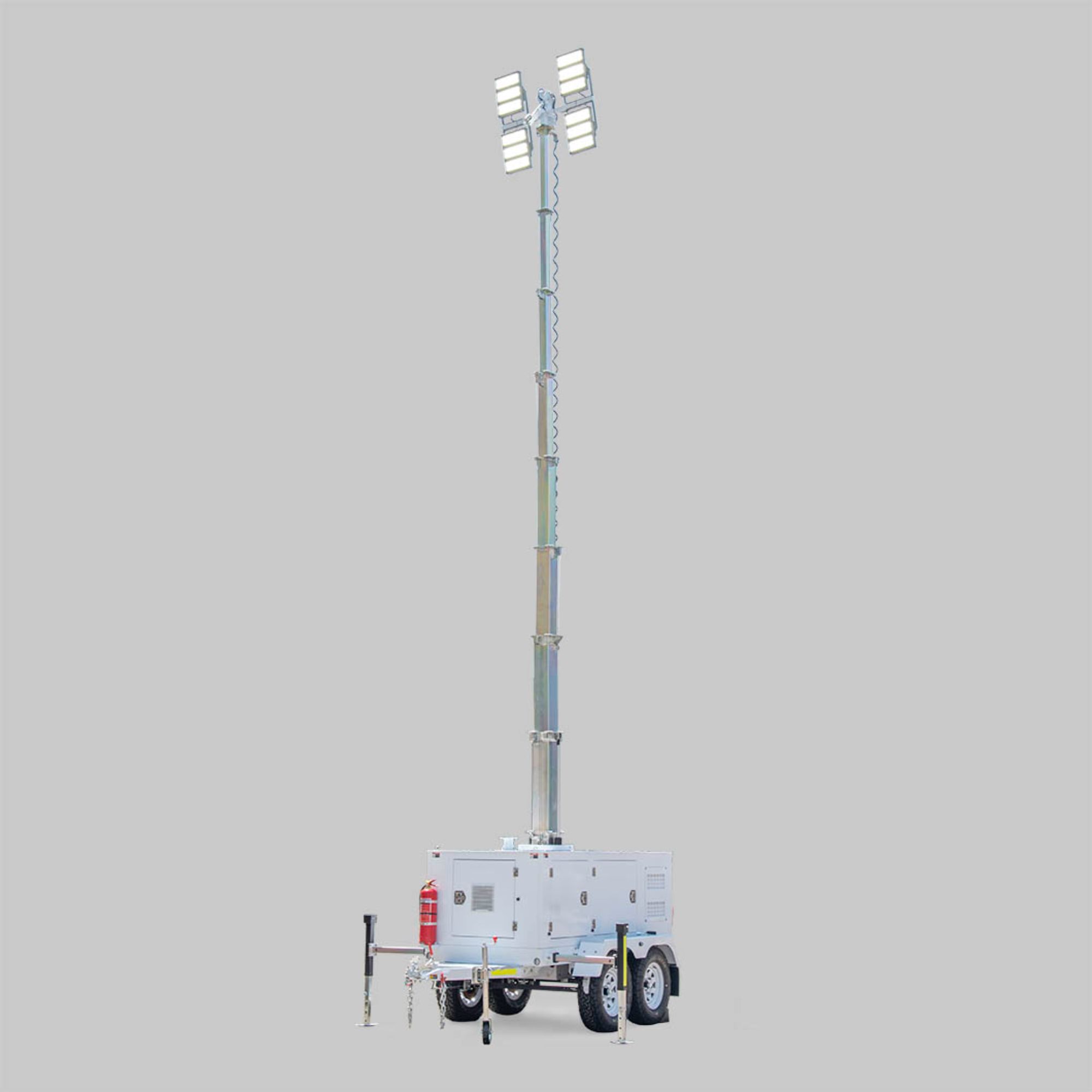

| Mast Height | 9m |
| Mast Type | Square galvanized |
| Mast Operating | Hydraulic |
| Mast Rotation | 350° |
| Power | |
| Battery Type | Lithium |
| Battery Capacity | 10.24Kw.h |
| Inverter | 8kva |
| Outlets | 4 PCS |
| Genset | |
| Engine Model | 403D-15G |
| Genset Output | 10kw/10kva |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 300L |
| Fuel Consumption / Hr | 2.3L |
| Overall Run Time (Hrs) | 600Hrs |
| Alternator | Meccalte |
| Noise Level | 65dB@7M |
| Control Panel | MRS16 |
